Why Invest in a Highway Guardrail Roll Forming Machine?
Road safety depends on high-quality guardrails. The highway guardrail roll forming machine is the backbone of modern guardrail production, offering unmatched speed, accuracy, and material optimization. Whether you’re upgrading your factory or starting a new production line, this machinery ensures your guardrail profiles meet international standards like AASHTO M180 or EN 1317.
Key Features of Our Guardrail Roll Forming Equipment
Continuous High-Speed Operation – Produces up to 15–20 meters per minute, minimizing downtime.
Interchangeable Roller Stations – Quickly switch between W-beam, thrie-beam, or cable barrier profiles.
Hydraulic Cutting Systems – Clean, burr-free cuts without secondary processing.
PLC Control with HMI – User-friendly interface for precise adjustment of forming speed, punching positions, and length tolerances.
Heavy-Duty Frame – Built with reinforced steel to handle hot-dip galvanized coils up to 600 MPa tensile strength.
How a Highway Guardrail Roll Forming Machine Saves Your Budget
Material Waste Reduction – Advanced roll design minimizes scrap, saving up to 8% of coil input.
Labor Cost Optimization – One operator can manage the entire line, from uncoiling to stacking.
Energy Efficiency – Servo-driven motors consume 30% less power compared to hydraulic alternatives.
Low Maintenance – Hard-chromed rollers extend tool life to over 5,000 tons of production.

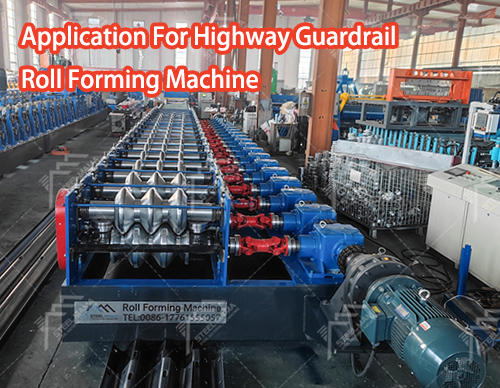

Applications: Where Does the Guardrail Forming Line Shine?
Expressways & Freeways – Producing standard 4-meter or 6-meter guardrail panelsfor median and roadside installation.
Mountain Roads – Forming curved or variable-radius sections for challenging terrains.
Bridge Parapets – Customized thrie-beam guardrails with enhanced impact resistance.
Tunnel Portals – Special anti-corrosion profiles for humid or saline environments.
Technical Specifications (Model GR-600)
Parameter
Value
Coil Width
600–750 mm
Coil Thickness
2.0–4.5 mm
Forming Stations
18–22 (depending on profile)
Main Motor Power
22 kW – 37 kW
Cutting Method
Hydraulic shear + pre-punching unit
Output Speed
10–18 m/min (adjustable)
Weight (approx.)
28–35 tons
Why Choose Our Highway Guardrail Roll Forming Machine?
ISO 9001 & CE Certified – Every machine undergoes 72-hour test runs before delivery.
Global Spare Parts Network – Quick replacement for roll shafts, gearboxes, and hydraulic pumps.
On-Site Installation & Training – Our engineers help your team master the roll forming process within 5 days.
Custom Design – We tailor roll tooling for special profiles (e.g., 3-wave guardrails, decorative posts).
Customer Success Stories
“Our new highway guardrail roll forming machine increased daily output by 40% and reduced coil waste from 12% to 4.5%. The pre-punching system alone saved us $50,000 annually.” – Project Manager, Saudi Arabia Road Authority
“We produce guardrails for 5 different countries with just one machine – the quick-change roller system is a game-changer.” – Factory Director, Vietnam Infrastructure Group
FAQ
Q: Can this machine produce both W-beam and thrie-beam profiles? A: Yes – with interchangeable roller cassettes, you can switch profiles in under 2 hours.
Q: What’s the minimum order quantity for custom tooling? A: We design new rollers for orders of 1 set (18 stations) with a 3-week lead time.
Ready to Upgrade Your Guardrail Production Line?
Contact us today for a free quotation and sample guardrail panels produced by our highway guardrail roll forming machine. Our team responds within 4 hours – let’s build safer roads together!
