In the world of metal processing, the ability to convert large, master coils into precise, narrow strips is essential for downstream manufacturing. This transformation is achieved by a critical piece of equipment known as the steel slitting line machine. Whether for automotive parts, construction materials, or appliance manufacturing, understanding how this machinery works is the first step for any buyer looking to invest in reliable steel processing machinery.
This guide provides a detailed, step-by-step breakdown of the slitting machine process, from loading the heavy coil to the final recoiling of slit strips.
What is a Slitting Line?
A slitting line, also known as a slitter or slitting machine, is an industrial system designed to cut a wide master coil of metal (such as steel, aluminum, or stainless steel) into multiple narrower coils . This process is essential because steel mills typically produce coils in standard widths, while manufacturers require specific widths for products like metal roofing sheets, purlin sections, or tubes .
The primary goal of the slitting process is to achieve precise widths with minimal waste, ensuring that the slit strips have clean, burr-free edges suitable for the next stage of production .
The Step-by-Step Slitting Process

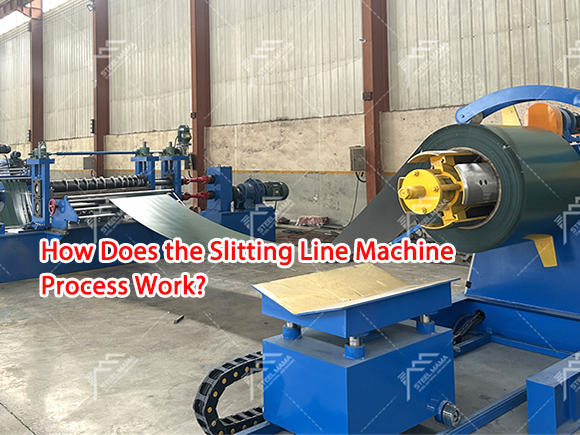

The operation of a steel slitting line machine can be broken down into three main stages: Uncoiling, slitting line machine, and Recoiling. However, a modern high-speed line involves several precise substeps to ensure accuracy.
Stage 1: Uncoiling and Preparation
Before any cutting happens, the master coil must be prepared to feed the material correctly.
Loading: The heavy master coil is placed onto the uncoiler mandrel using an entry coil car . The mandrel expands to grip the coil securely from the inside.
Peeling and Flattening: The leading end of the coil, held tight by straps, is located. A peeler breaks the straps, and the material is fed into a pinch roll and flattener (or leveler) . This removes the coil set (curvature) and ensures the strip is flat before entering the slitter.
Cropping: The very end of the coil, which may be irregular or damaged, is cut off square by a crop shear to create a clean, uniform leading edge for threading .
Stage 2: Slitting (The Cutting Action)
This is the heart of the line.
Entering the Slitter: The prepared strip is guided into the slitter head. This head contains two horizontal arbors (shafts) stacked vertically—one upper and one lower .
Rotary Cutting: Stacked on these arbors are multiple circular rotary cutting members, commonly known as slitter knives. The upper and lower knives intermesh like a pair of mating gears . As the material passes between them, the knives create a continuous shear line, slicing the wide strip into multiple narrower strips simultaneously .
Edge Trimming: The extreme edges of the master coil are often of lower quality or uneven. These are trimmed off by the outer knives and sent to a scrap winder or scrap chopper, which cuts the waste into small pieces for easy disposal .
Looping (The Tension Buffer): After slitting, the strips enter a looping pit . This is a critical component. The loop allows the slitter to run continuously while the recoiler slows down or stops to discharge a finished coil, maintaining overall line efficiency .
Stage 3: Recoiling and Offloading
Once slit, the individual strips must be rewound into tight, uniform coils.
Tensioning: The strips pass through a tension stand or tension unit . This device (often using pads or belts) applies back tension to the strips. This ensures they wind tightly and evenly on the recoiler drum, preventing telescope (uneven stacking) .
Recoiling: The strips are fed to the recoiler mandrel. As the mandrel rotates, it winds the multiple strips into separate, nested coils. Modern recoilers use constant tension control to ensure perfect coiling even at high speeds .
Separation and Offloading: A separating disc or deflector roll may be used to keep the individual strips apart as they wind. Once the desired coil size is reached, the strips are cut by an exit crop shear, and the finished slit coils are pushed onto an exit coil car to be removed from the line .
To achieve high precision (often within ±0.1mm), several components must work in harmony :
Uncoiler: Holds and pays out the master coil with controlled back tension .
Slitter Head: The tool-wielding component. High-end lines often have multiple interchangeable heads to reduce changeover time .
Spacing and Tooling: Precision is determined by the tooling. The spacing between the knives must be exact, typically using shimless tooling systems for accuracy . The clearance between the upper and lower knives is critical and usually set at 8-12% of the material thickness .
Recoiler: Winds the slit strips. A key feature is the gripper that holds the strip tail to prevent "coil popping" .
Loop Pit: Isolates tension between the slitter and recoiler .
While the core process is similar, lines are categorized by their configuration:
Single-Blade vs. Double-Blade: Single-blade lines use one arbor set for long runs. Double-blade lines use two sets of arbors for greater flexibility and faster changeovers between product sizes .
Loop Type: Lines can be configured with 入口活套 (entry loop), 出口活套 (exit loop), or 双活套 (double loop) to handle different materials and tension requirements, especially for thin or soft metals .
Applications of Slit Coils
The output from a slitting line is the direct input for many other processes:
Tube and Pipe Mills: Slit coils are fed into welding mills to create pipes and tubes .
Roll Forming:Roll forming machines use slit widths to produce roofing sheets, purlin sections, and wall cladding .
Stamping: Automotive and appliance manufacturers use slit coils for stamping parts.
HVAC: Production of ductwork and fittings .
Conclusion
The slitting line is a marvel of precision engineering. By transforming large, cumbersome master coils into precise, ready-to-use strips, it plays a vital role in the metal supply chain. For manufacturers looking to control their production quality from the ground up, investing in a high-quality slitting line ensures efficiency, reduces waste, and provides the exact material specifications required for downstream steel processing machinery.
Whether you are processing GI coil, PPGI coil, or stainless steel, understanding this process ensures you select the right equipment for your industrial needs.
Frequently Asked Questions
Q: What is the difference between a slitter and a shear? A: A slitter uses circular knives to cut longitudinally along the length of the coil, like a can opener. A shear typically cuts across the width of the sheet to cut it to length .
Q: How narrow can slitting lines cut? A: This depends on thickness. For thin materials (under 0.5mm), strips can be as narrow as 15mm. For thicker plates, the minimum width increases .
Q: What materials can be processed? A: Common materials include cold-rolled steel, hot-rolled steel, stainless steel, aluminum coil, copper, and pre-painted materials like PPGI .
