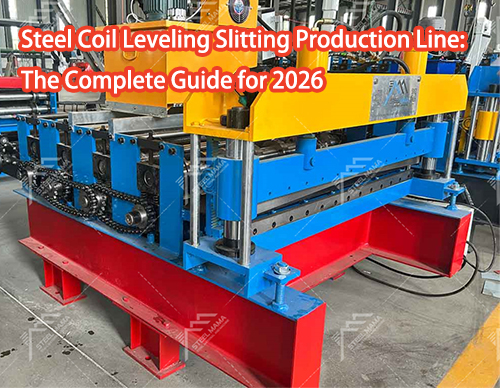

Steel Coil Leveling Slitting Production Line: The Complete Guide for 2026
If you work with metal coils—whether you're in steel service centers, automotive manufacturing, construction, or appliance production—you've likely heard of a steel coil leveling slitting production line. But what exactly is this equipment, and why is it critical for modern metal processing? This comprehensive guide explains everything you need to know about coil leveling and slitting lines, their components, applications, and how choosing the right slitting production line can transform your manufacturing efficiency.
What Is a Steel Coil Leveling Slitting Production Line?
A steel coil leveling slitting production line is an integrated system designed to process wide master coils of metal into narrower, perfectly flattened strips. The process involves three main stages: uncoiling, leveling, and slitting (or cut-to-length) .
In simple terms, this metal coil processing line takes a large, heavy coil of steel—which may have curvature, stress, or unevenness from the rolling process—and transforms it into flat, straight strips of precise width, ready for downstream manufacturing .
The leveling slitting production line is essential because raw steel coils are rarely "ready to use." They arrive with:
Coil set (curvature from being wound)
Edge wave or center buckle (uneven flatness)
Internal stress that causes distortion during cutting
A coil leveling machine eliminates these defects, while the slitting machine divides the wide coil into multiple narrower coils .
How Does a Steel Coil Leveling Slitting Production Line Work?
The typical workflow of a coil processing line follows these stages:
1. Coil Loading & Uncoiling
The process begins with a hydraulic decoiler or uncoiler, which mounts the master coil on an expandable mandrel and feeds the strip into the line . Heavy coils—up to 30 tons or more—are loaded using a coil car .
2. Leveling (Flattening)
This is a critical step. The strip passes through a leveling machine equipped with multiple staggered rollers that alternately bend the material up and down . This process:
Eliminates coil curvature and internal stress
Produces a flat, uniform surface
Prevents downstream defects during slitting or cutting
For high-strength steels (HSS) with yield strength exceeding 1,000 N/mm², specialized high-strength steel coil leveling lines use advanced leveler designs with hydraulic sliding systems to achieve perfect flatness .
3. Slitting (Longitudinal Cutting)
The flattened strip enters the slitter head, where precision rotary knives cut the wide coil into multiple narrower strips simultaneously . Modern slitting production lines achieve width tolerances as tight as ±0.05 mm .
Key features of advanced slitting machines include:
Quick-change tooling for fast profile switching
Motorized knife positioning for repeatable accuracy
Scrap winders that automatically collect edge trim waste
4. Tension Control & Recoiling
The slit strips pass through a tension control system that maintains consistent tension to prevent telescoping or surface damage . Finally, the recoiler winds the narrow strips into tight, uniform coils ready for shipment or further processing .
Key Components of a Steel Coil Leveling Slitting Production Line
Types of Steel Coil Leveling Slitting Production Lines
Different applications require different configurations. Common types of coil processing lines include:
Light-Gauge Slitting Lines
Designed for 0.15 mm to 4.0 mm thickness, these slitting production lines process materials like cold-rolled steel, galvanized sheets, aluminum, and pre-painted coils . Typical applications include roofing, HVAC ductwork, and appliance components. Line speeds can reach 200 meters per minute .
Heavy-Plate Slitting Lines
For thicker materials—up to 25 mm—these heavy-duty steel coil slitting lines handle hot-rolled steel, stainless steel, and high-strength alloys . They are used in structural steel, shipbuilding, and heavy equipment manufacturing.
Cut-to-Length (CTL) Lines
Instead of recoiling, some leveling and cut-to-length lines shear the leveled strip into flat sheets. These systems are ideal for producing blanks for stamping, laser cutting, and fabrication .
Stretch Leveling Lines
For applications demanding exceptional flatness—such as automotive panels or laser-cut parts—stretch leveling technology grips and stretches the strip to eliminate edge waves, center buckles, and "memory" distortion . This process produces "laser-flat" material for critical applications .
Applications of Steel Coil Leveling Slitting Production Lines
Benefits of a Steel Coil Leveling Slitting Production Line
Investing in a slitting production line offers significant advantages:
1. Material Savings
Cold roll slitting uses nearly 100% of the input coil, with minimal scrap compared to cutting from flat sheets. The edge trim is collected and recycled .
2. Consistent Quality
Every strip from the same coil leveling and slitting line has identical width, flatness, and surface quality—critical for downstream processes .
3. High Productivity
Modern slitting lines operate at speeds up to 200 meters per minute or more, producing multiple strips simultaneously .
4. Automation & Precision
PLC-controlled systems automate the entire process, reducing manual intervention and ensuring repeatable accuracy. Width tolerances of ±0.05 mm are achievable .
5. Versatility
These lines process a wide range of materials: cold-rolled steel, galvanized steel, stainless steel, aluminum, copper, pre-painted coils, and high-strength steels .
Selecting the Right Steel Coil Leveling Slitting Production Line
When evaluating coil processing equipment, consider these factors:
Material Specifications
Thickness range – Choose a line matched to your material gauge
Width capacity – Ensure the line accommodates your coil widths
Material type – Some lines are optimized for specific metals (aluminum, stainless, HSS)
Production Requirements
Output speed – Higher speeds increase throughput but may require more investment
Coil weight – Heavier coils reduce changeover time but require stronger equipment
Automation Level
PLC control with touchscreen interface for easy operation
Quick-change tooling for reducing setup time
Automatic positioning of knives and separators
After-Sales Support
Installation assistance and technician training
Spare parts availability and warranty coverage
Revamping/upgrading services for existing lines
Retrofitting vs. New Equipment
For businesses with existing coil processing lines, retrofitting can be a cost-effective alternative to purchasing new equipment . Upgrades include:
Quick-change blade systems for enhanced safety and efficiency
Stretch levelers integrated into existing CTL lines
Turret slitting heads with hands-free threading
Software tools like ASKOedge for optimizing slitting setups and tracking tool performance
FAQ
Q: What thickness can a steel coil leveling slitting production line handle? A: It depends on the model. Light-gauge lines handle 0.15 mm to 4.0 mm, while heavy-plate lines process up to 25 mm .
Q: Can one line process different materials? A: Yes. Most slitting production lines process cold-rolled steel, galvanized steel, stainless steel, aluminum, copper, and pre-painted coils .
Q: What is the typical width tolerance? A: High-precision slitting machines achieve ±0.05 mm width accuracy .
Q: How fast can a slitting line operate? A: Light-gauge lines reach 200 meters per minute or more . Heavy-plate lines operate at lower speeds—typically 25-50 m/min .
Q: What is the difference between a slitting line and a cut-to-length line? A: A slitting line recoils the narrow strips into coils, while a cut-to-length line shears the leveled strip into flat sheets .
Conclusion: The Future of Coil Processing
In today's competitive metal fabrication market, the steel coil leveling slitting production line is no longer a luxury—it is a necessity. Whether you operate a small service center or a large-scale manufacturing facility, owning a reliable coil processing line gives you control over quality, cost, and delivery schedules.
Advanced leveling technologies like stretch leveling for laser-flat results
Energy-efficient drives and reduced power consumption
Compact footprints for smaller workshop spaces
If you are ready to upgrade your production capabilities or start a new coil processing venture, explore our range of high-performance steel coil leveling slitting production lines. Contact us today for a customized quote, free consultation, and a live demo video.
