Discover how a Door Frame Roll Forming Machine can transform your production line. Explore high-speed roll forming technology, customizable door frame profiles, and cost-effective metal framing solutions for modern construction.
Introduction: Why Your Production Line Needs a Door Frame Roll Forming Machine
In the competitive world of metal fabrication, efficiency and precision are non-negotiable. Whether you manufacture standard residential steel door frames or complex commercial hollow metal frames, the backbone of your operation is the Door Frame Roll Forming Machine. This automated equipment is not just a purchase—it’s a strategic investment that directly impacts your production capacity, material waste, and bottom line.

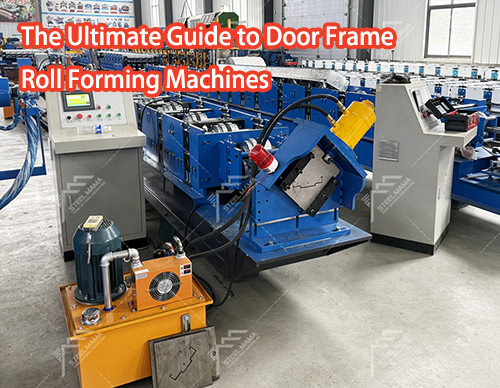

What Is a Door Frame Roll Forming Machine?
A Door Frame Roll Forming Machine is a continuous bending system that converts flat steel coils or galvanized sheets into precise door frame profiles. Unlike press braking, which is slow and labor-intensive, roll forming uses a series of progressive roller stations to shape metal at high speeds—often exceeding 30 meters per minute.
Key Components of a High-Quality Roll Former:
Decoiler: Holds the steel coil and feeds material smoothly.
Feeding & Guiding System: Ensures straight entry to prevent twisting.
Roller Stations: Hardened chrome-plated rollers that gradually form the profile.
Cutting System: Hydraulic or servo-driven flying shears for precise length cutting.
PLC Control Panel: Allows operators to adjust profile dimensions, speed, and cut lengths with minimal downtime.
Why Invest in a Door Frame Roll Forming Machine?
1. Unmatched Production Speed
Manual fabrication yields 50–100 frames per day. A modern Door Frame Roll Forming Machineeasily produces 500–1,000 knocked-down frames daily, depending on gauge thickness and profile complexity.
2. Material Savings of Up to 15%
Precision roll forming minimizes scrap. By using pre-painted galvanized steel or stainless steel coils, you reduce edge trimming waste—a critical factor when steel prices are volatile.
3. Consistent Quality & Tolerances
Human error is eliminated. Every door frame—whether single rabbet, double rabbet, or custom architectural profile—meets ASTM or EN standards with tolerances as tight as ±0.5mm.
4. Flexibility for Custom Orders
Today’s best roll forming machines offer quick tooling changeovers. Within 20 minutes, you can switch from producing 48” x 80” residential frames to fire-rated commercial frames with 14-gauge steel.
Auto Stacking Systems: Collect finished frames without manual handling.
In-Line Punching: Create hinge slots, strike holes, and screw ports during forming—eliminating secondary operations.
Remote Monitoring: Track production KPIs via smartphone apps.
Energy-Saving Servo Drives: Reduce electricity consumption by 30% compared to hydraulic systems.
Maintenance Best Practices for Longevity
Protect your investment with these routine checks:
Daily: Clean roller surfaces and lubricate moving parts.
Weekly: Inspect hydraulic oil levels and check for loose bolts.
Monthly: Calibrate cutting length sensors and verify profile dimensions.
Annually: Replace worn rollers and update PLC firmware.
Cost Analysis: Is a Door Frame Roll Forming Machine Worth It?
Factor
Manual Method
Roll Forming Machine
Initial Investment
Low ($5k–$20k in tooling)
High ($60k–$250k)
Per-Frame Cost
$8–$12 (labor + scrap)
$2–$4 (automated)
Break-Even Point
N/A
6–18 months (based on volume)
Scalability
Limited
High—add more roller stands for new profiles.
For factories producing >10,000 frames annually, the roll former pays for itself within a year.
FAQ
Q1: Can one machine produce both standard and fire-rated frames? Yes—if it accommodates the required gauge thickness (up to 2.5mm) and has adjustable roller gaps.
Q2: What steel grades are compatible? Galvanized steel (DX51, SGCC), stainless steel (304/316), and pre-painted coils.
Q3: How long does tooling changeover take? With quick-release cartridges, under 20 minutes.
Q4: Do you offer training? Reputable suppliers provide on-site installation and operator training.
Q5: What warranties are standard? Typically 12–24 months on mechanical parts, excluding consumable rollers.
Conclusion: Future-Proof Your Business with the Right Door Frame Roll Forming Machine
The construction industry is shifting toward prefabrication and just-in-time delivery. A metal door frame making machine positions your factory to meet this demand with speed, accuracy, and minimal waste. Whether you’re a startup or an established manufacturer, the right roll forming equipment unlocks new revenue streams—from custom architectural frames to high-volume standard door sets.
Ready to take the next step? Contact our engineering team steelmama for a free profile feasibility study and a tailored quote. We’ll help you select the perfect machine based on your coil width, thickness range, and target output.
