The Complete Guide to the C Stud and U Track Profile Keel Roll Forming Machine: Precision, Speed, and Versatility

In the world of drywall construction and light gauge steel framing, the combination of C studs and U tracks forms the backbone of modern building systems. Whether for interior partitions, ceiling grids, or structural wall framing, the demand for high-quality, consistent profiles is relentless. At the center of this production capability stands the C Stud and U Track Profile Keel Roll Forming Machine—a specialized piece of equipment designed to manufacture both components efficiently and accurately.

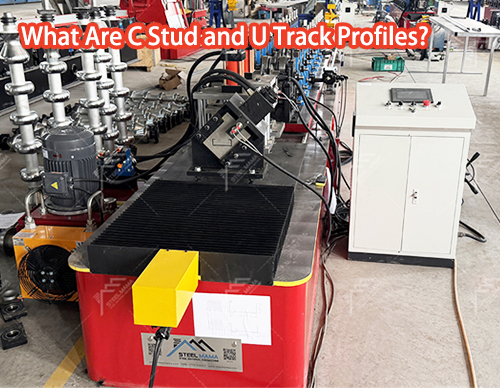

What Are C Stud and U Track Profiles?

Before exploring the machinery, it is essential to understand the products. A C stud (also known as a C channel or stud) is a load-bearing vertical framing member with a distinctive C-shaped cross-section. The U track (or U channel) serves as the horizontal top and bottom runner that holds the C studs in place. Together, they form a complete drywall framing system commonly referred to as keel in many markets. Because these profiles must interlock precisely, manufacturing them on a single, integrated roll forming machine ensures dimensional consistency and reduces production complexity.

Why Invest in a C Stud and U Track Profile Keel Roll Forming Machine?

For manufacturers in the metal framing industry, efficiency and flexibility are key to profitability. A dedicated roll forming machine for C studs and U tracks offers several distinct advantages that set it apart from general-purpose equipment.

1. Dual-Production Capability

One of the most significant advantages of this roll forming machine is its ability to produce both C studs and U tracks using the same line. By changing the roll forming tooling and adjusting the entry guides, operators can switch between profiles quickly. This dual-functionality reduces capital expenditure and floor space requirements, making it an ideal solution for manufacturers looking to maximize output with minimal equipment investment.

2. High-Speed Continuous Operation

Time is a critical factor in construction supply. This C Stud and U Track Profile Keel Roll Forming Machine operates at speeds ranging from 12 to 20 meters per minute, depending on material thickness. The high-speed capability ensures that large-volume orders for drywall studs and tracks can be fulfilled without delays, keeping production lines running smoothly.

3. Precision PLC Control and Hydraulic Cutting

Accuracy is non-negotiable when producing steel framing components. The machine is equipped with an advanced PLC control system that manages both roll forming and cutting operations. The hydraulic cutting mechanism, typically configured as a post-cutting system, ensures that each C stud or U track is cut to exact length with a tolerance of ±0.5mm to ±1.0mm. This precision guarantees seamless assembly on construction sites, reducing waste and installation time.

4. Robust Construction for Heavy-Duty Use

Built on a heavy-duty steel frame, this roll forming equipment is designed to withstand continuous operation in demanding industrial environments. The rollers are manufactured from high-grade GCr15 bearing steel, heat-treated for hardness and wear resistance. This ensures that the machine maintains its forming accuracy even when processing high-strength galvanized steel or cold-rolled coils over extended periods.

Key Technical Specifications

To help you evaluate the capabilities of this C Stud and U Track Profile Keel Roll Forming Machine, here are the standard technical parameters:

Applications of C Stud and U Track Profiles

The profiles produced by this roll forming machine are essential components in a wide range of construction applications:

• Interior Drywall Partitions: C studs and U tracks form the framework for gypsum board walls in commercial and residential buildings.

• Ceiling Systems: U tracks serve as perimeter channels for suspended ceiling grids.

• Exterior Cladding Support: In curtain wall systems, C studs provide vertical support for exterior finishes.

• Light Gauge Steel Framing: For non-structural and some structural applications, these profiles offer a lightweight, durable alternative to timber.

• Industrial Mezzanines: C channels are used in secondary support structures.

Customization Options for Your Production Needs

We understand that every manufacturer has unique requirements. That is why our C Stud and U Track Profile Keel Roll Forming Machine can be customized to suit your specific needs:

• Tooling Sets: Interchangeable roller sets allow for multiple profile sizes on a single machine.

• Automatic Stackers: Reduce manual labor and improve packaging efficiency.

• Punching Systems: Optional hydraulic punching for service holes or end notches.

• Voltage Adaptations: Customized electrical configurations for different countries and regions.

Maximizing ROI with a Reliable Roll Forming Machine

Investing in a high-quality roll forming machine is a strategic decision that directly impacts your bottom line. With its combination of dual-profile capability, high-speed production, and precision cutting, this C Stud and U Track Profile Keel Roll Forming Machine offers a compelling return on investment. Lower labor costs, reduced material waste, and the ability to meet tight delivery schedules all contribute to enhanced profitability.

Conclusion

For manufacturers in the drywall, steel framing, and construction supply industries, a reliable C Stud and U Track Profile Keel Roll Forming Machine is indispensable. It delivers the speed, precision, and flexibility needed to compete in today’s demanding market. Whether you are expanding your existing production line or establishing a new manufacturing facility, this roll forming equipment represents a long-term solution backed by robust engineering and proven performance.

Ready to upgrade your production capabilities? Contact us today to request a quote, discuss customization options, or schedule a live demonstration. Let us help you build the foundation for your next success in the metal framing industry.
