A hat channel roll forming machine is a continuous bending operation where a long strip of metal, typically coiled steel, is passed through consecutive sets of rolls. Each set of rolls performs incremental bending until the desired "hat" cross-section profile is achieved . This process, known as cold roll forming, is distinct from other methods like press braking or extrusion because it creates uniform, high-strength profiles with exceptional efficiency and minimal waste .
The resulting profile is characterized by a flat base, two vertical webs, and two outward-turning flanges, resembling a top hat. These profiles are also commonly referred to as top hat channels or furring channels in the drywall and construction industries .
![Metal Channel Roll Forming Equipment]( "Metal Channel Roll Forming Equipment")
Key Features and Technical Specifications
Modern hat channel roll forming equipment is highly automated and customizable. When evaluating a machine, you will encounter several critical technical specifications:
Material Thickness: Most machines can handle a range of materials, typically from 0.3mm to 3.0mm, depending on the model and application requirements . For heavy-duty structural applications, machines processing up to 3mm thick steel are available .
Material Compatibility: These machines are versatile enough to process a variety of metals, including galvanized steel, cold-rolled steel, stainless steel, and aluminum .
Forming Speed: Production speeds can vary significantly, typically ranging from 5 to 30 meters per minute, with high-speed models reaching up to 40 meters per minute for lighter gauge materials .
Control System: The heart of a modern machine is its PLC with a user-friendly touchscreen interface. This allows operators to precisely control the forming process, store multiple profile recipes, and conduct real-time diagnostics, ensuring ±0.1mm precision .
Roller Material: Durability is ensured by rollers made from high-grade materials such as No. 45 forged steel or Cr12 steel, often heat-treated and chrome-coated for longevity and a smooth surface finish .
Cutting System: Most machines feature a hydraulic cutting system or a servo-driven following cut that cuts the profiles to the specified length without stopping the forming process, ensuring clean, burr-free edges and high efficiency .

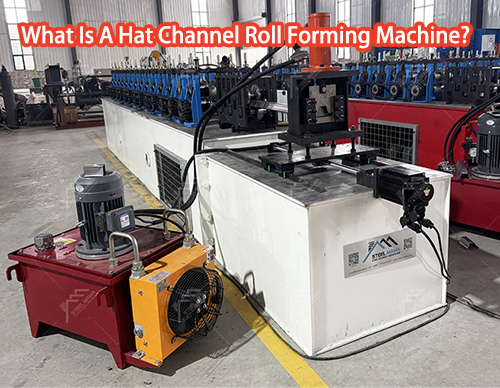

![Hat channel machine]( "Hat channel machine")
Investing in a dedicated top hat roll forming machine offers significant advantages over traditional fabrication methods:
High Production Efficiency: Roll forming is a continuous process. Unlike press braking, which creates one piece at a time, roll forming can produce thousands of feet of channel per hour, dramatically reducing labor costs and lead times .
Consistency and Precision: The automated nature of the process ensures that every single channel produced is identical, meeting strict tolerances required for modern construction standards .
Material and Cost Savings: The cold roll forming process minimizes material waste by utilizing coils efficiently. Furthermore, the high strength-to-weight ratio of the profiles allows for lighter structures without compromising integrity, saving on material costs .
Versatility with Inline Operations: Advanced hat profile making machines can integrate secondary operations directly into the production line. This includes pre-punching holes, notching, embossing logos or text, and inkjet marking for identification, eliminating separate handling processes .
Durability: The finished hat channels exhibit exceptional structural integrity, making them ideal for load-bearing applications in walls, roofs, and floors .
![Automatic Channel Roll Forming Machine]( "Automatic Channel Roll Forming Machine")
Applications in Industry
The versatility of the hat channel profile makes it indispensable across multiple sectors:
Construction and Drywall Framing: This is the most common application. Hat channels are used as furring channels to attach drywall or insulation to masonry walls or ceilings. They create a gap for services like wiring and plumbing and help in soundproofing and leveling surfaces .
Roofing and Ceiling Support Systems: They serve as lightweight yet robust purlins or support components for metal roofing and suspended ceiling grids in commercial and industrial buildings .
Industrial Shelving and Racking: The high strength of these profiles makes them ideal for constructing heavy-duty storage racks, mezzanine floors, and warehouse shelving systems .
Automotive and Transportation: In the automotive industry, modified hat sections are used in chassis components, truck trailers, and railcar sidewalls to provide reinforcement while keeping weight low .
Solar Mounting Structures: The durability and corrosion resistance (especially with galvanized steel) make them perfect for framing structures that support solar panels in outdoor environments .
![Custom Channel Roll Forming System]( "Custom Channel Roll Forming System")
How to Choose the Right Machine for Your Needs
Selecting the correct hat channel roll forming machine depends on your specific business goals. Here are key factors to consider:
Production Volume: For small workshops or prototype work, a semi-automatic machine might suffice. However, for large-scale, continuous production, a fully automatic or CNC automatic machine is essential to maximize throughput and consistency .
Profile Flexibility: If you need to produce various sizes or even different profiles (like Omega or C channels), consider a modular machine or a two-in-one machine that allows for quick changeovers of roll tooling. This flexibility can reduce the need for multiple dedicated lines .
Material Specifications: The thickness and type of material you plan to use will dictate the required motor power (ranging from 5kW to 15kW+) and the robustness of the machine frame .
Conclusion
The Hat Channel Roll Forming Machine is more than just a piece of manufacturing equipment; it is a complete solution for producing high-quality, essential building components. By automating the production of these critical profiles, businesses can achieve new levels of efficiency, precision, and profitability. As construction and manufacturing technologies continue to evolve, investing in advanced roll forming technology will remain a key strategy for staying competitive in the global market.
