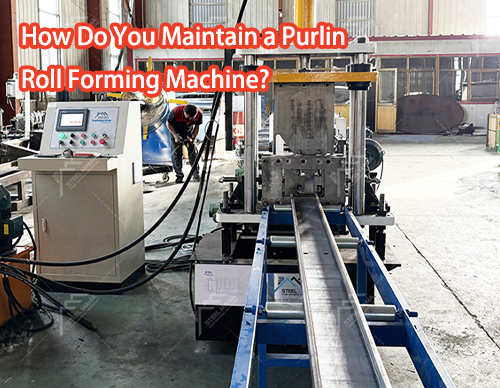

How Do You Maintain a Purlin Roll Forming Machine? A Complete Preventive Maintenance Guide
Apurlin roll forming machine is a long‑term investment. With proper care, it can run reliably for 10–15 years or more. Without it, you will face frequent downtime, poor profile accuracy, and expensive roller replacement. So, how do you maintain a purlin roll forming machine correctly? This guide covers daily, weekly, monthly, and yearly tasks.
Why Maintenance Matters for a Purlin Roll Forming Machine
A purlin roll forming machine operates under continuous high stress – bending steel, punching holes, and shearing to length. Metal dust, oil residue, and roller wear all accumulate over time. A structured maintenance plan ensures:
Perform these tasks before or after each production run.
1. Clean the Roll Forming Area
Remove metal shavings, scale, and oil residue from the forming stations, punching unit, and cutting die. Use compressed air or a soft brush. Built‑up debris can scratch the purlin surface and misalign holes.
2. Check Hydraulic Oil Level
The hydraulic system powers the punching and cutting actions. Look at the sight glass or dipstick. Low oil causes slow punching and overheating. Top up with the recommended grade (usually ISO 46 or 68).
3. Inspect the Lubrication System
If yourpurlin roll forming machine has an automatic oil lubricator, make sure it is feeding oil to each roller bearing and gearbox. Manual systems require you to grease fittings every shift.
4. Examine the Strip Guide and Feed Rollers
Check that the entry guide is not bent and the feed rollers are parallel. Misalignment here will cause crooked purlins and uneven punching.
Weekly Maintenance Tasks
Once a week, spend 30–45 minutes on deeper checks.
5. Inspect All Rollers for Wear
Walk along the forming stations. Look for scratches, grooves, or material buildup on the roller surfaces. Worn rollers produce burrs and dimensional drift. Rotate or replace damaged roll forming rollers as needed.
6. Check Punch and Die Sharpness
The punching system uses hydraulic punch units or servo‑driven punches. If holes show ragged edges or incomplete punching, the punches or dies are dull. Replace them promptly – dull tools overload the hydraulic pump.
7. Tighten Loose Bolts and Fasteners
Vibration loosens bearing housings, side‑plate bolts, and sensor brackets. Use a torque wrench on critical fasteners of your purlin roll forming machine.
8. Test Safety and Limit Switches
Manually trigger emergency stops, end‑of‑strip sensors, and stacker limit switches. A failed switch can cause over‑travel or collisions.
Monthly Maintenance Procedures
These tasks require about two hours and some basic tools.
9. Verify Roller Alignment with a Feeler Gauge
Even small misalignments cause twisted purlins. Place a master profile sample across the forming stations and check gaps with a feeler gauge. Adjust spacers or adjustable stands to restore alignment.
10. Clean and Change Hydraulic Filters
Dirty hydraulic filters reduce flow and damage pumps, valves, and cylinders. Replace the return line filter and suction strainer. Record the date – do this every 200–300 operating hours.
11. Inspect the Gearboxes for Leaks
Check gearbox seals and oil plugs on each forming station (especially the main drive gearbox). Even a small leak leads to gear wear and noise. Top up with the correct gear oil (e.g., ISO 220).
12. Calibrate the Cut‑to‑Length System
Run a short batch and measure 5–10 purlin lengths. If length variation exceeds ±1.5mm, recalibrate the encoder and PLC parameters. This is critical when your purlin roll forming machineuses a flying cutoff.
Yearly Overhaul and Professional Service
Once a year – or every 2,000–3,000 operating hours – perform a major inspection.
13. Replace Worn Rollers in Batches
Instead of replacing single rollers, change a full station set (top and bottom). This maintains consistent profile geometry.
14. Inspect the Main Drive Chain and Sprockets
Check for chain elongation (more than 2–3% stretch) and tooth wear on sprockets. Replace both together. A broken chain during production can damage rollers and sensors.
15. Flush and Replace All Hydraulic Oil
Drain the tank, clean the suction strainer, and refill with fresh hydraulic oil. Also change the air breather on the tank.
16. Audit Electrical and PLC Systems
Test servo drives, sensors, and cable connections. Update the PLC program backup. Clean control cabinet fans and filters.
Common Maintenance Mistakes to Avoid
Using the wrong grease – High‑temperature bearing grease is often required.
Ignoring the pre‑punch unit – Worn punches cause tool breakage and scrap.
Running with low hydraulic oil – This destroys pumps in minutes.
How Often Should You Train Operators on Maintenance?
Even the best maintenance schedule fails if operators are not trained. Conduct a refresher session every six months covering:
Daily cleaning and lubrication
Recognising abnormal noise or vibration
Emergency stop and isolation procedures
Conclusion
Answering the question “How do you maintain a purlin roll forming machine?” comes down to three words: daily, weekly, and monthly discipline. Clean the forming area every shift, check hydraulic oil and lubrication daily, inspect rollers and punches weekly, and perform a full roller alignment and filter change monthly. With this plan, your purlin roll forming machinewill deliver precision C and Z purlins for over a decade with minimal unplanned stops.
