Why a Cut to Length Machine Is the Backbone of Modern Metal Processing

In today’s fast-paced manufacturing environment, efficiency and precision are non-negotiable. Whether you process stainless steel, aluminum, copper, or galvanized coils, a Cut to Length Machine is the essential production line that transforms bulky metal coils into accurate, ready-to-use flat sheets.

What Is a Cut to Length Machine?

A Cut to Length Machine (also known as a CTL line) is an integrated system that uncoils, levels, measures, and shears metal coils into flat sheets of predetermined lengths. Unlike general shears, a Cut to Length Machine handles continuous coil stock and delivers high-speed, burr-free, and repeatable cuts with minimal material waste.

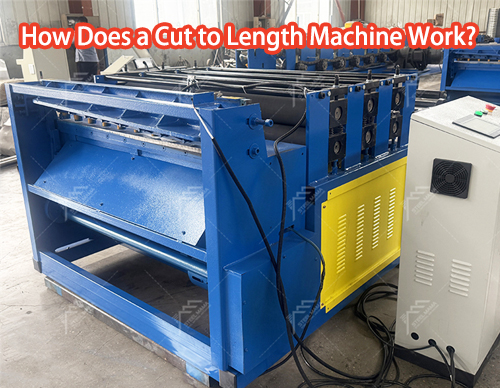

How Does a Cut to Length Machine Work?

A standard Cut to Length Machine consists of five core stations:

1. Uncoiler – Holds and releases the metal coil under tension.

2. Peeler & Straightener – Flattens the coil and removes curvature.

3. Loop pit / Buffer – Ensures continuous operation during coil changeover.

4. Feed & Measuring Unit – Uses servo-driven rollers to precisely advance the strip.

5. Shear / Flying Guillotine – Cuts the strip to the programmed length.

Advanced Cut to Length Machine models integrate PLC controls and HMI touchscreens, allowing operators to change sheet lengths instantly without changing blades.

Key Benefits of Using a Cut to Length Machine

1. Precision Cutting Accuracy

A modern Cut to Length Machine achieves length tolerances of ±0.2mm or better. Servo-driven feed systems eliminate cumulative errors found in manual cutting.

2. High Production Speed

Depending on material thickness, a Cut to Length Machine can run at 20 to 60 meters per minute, producing thousands of sheets per shift with consistent quality.

3. Zero Surface Damage

Quality Cut to Length Machine lines include rubber-coated pinch rolls and non-marking support tables, protecting pre-painted, embossed, or polished surfaces.

4. Material Versatility

A single Cut to Length Machine can process:

• Stainless steel (0.3mm – 6.0mm)

• Aluminum (0.2mm – 8.0mm)

• Copper & brass (0.2mm – 4.0mm)

• Galvanized & cold-rolled steel

• Electrical silicon steel for transformer laminations

5. Reduced Scrap and Labor Costs

Automated Cut to Length Machine lines reduce manual handling, minimize end trims, and require only one operator per shift.

Types of Cut to Length Machine

Who Needs a Cut to Length Machine?

• Metal service centers – Producing standard-sized flat sheets from master coils

• Automotive suppliers – Cutting blanks for body panels, chassis parts, and gaskets

• Appliance manufacturers – Creating casings for refrigerators, washing machines, and ovens

• HVAC duct fabricators – Making rectangular sheets for air handling systems

• Transformer & electrical component makers – Cutting silicon steel laminations

How to Choose the Right Cut to Length Machine

When investing in a Cut to Length Machine, consider these seven critical factors:

1. Max coil weight (1 ton to 30+ tons)

2. Material thickness range (minimum and maximum gauge)

3. Coil width capacity (from 200mm to 2000mm)

4. Required length accuracy (general ±1mm vs precision ±0.1mm)

5. Line speed (m/min for your production volume)

6. Stacking system (manual, magnetic, or air floatation)

7. Automation level (manual control vs full PLC with remote diagnostics)

Why Upgrade to Our Cut to Length Machine?

Our latest Cut to Length Machine line is engineered for Industry 4.0:

• Servo feed system with absolute encoders for ±0.15mm accuracy

• Quick-change shear cassette – blade change under 10 minutes

• Energy-efficient hydraulics – 30% lower power consumption

• Remote monitoring ready – Ethernet/IP connectivity for IoT integration

• CE & ISO certified safety guarding as standard

Real customer result: A Midwest metal service center replaced two old shears with one our Cut to Length Machine and increased output by 220% while reducing scrap from 4% to 0.8% .

Cut to Length Machine vs. Slitting Line – Which Do You Need?

Many buyers confuse these two. Here is the simple difference:

• A Cut to Length Machine produces flat sheets of fixed length.

• A slitting line produces narrow coils (multiple strips wound on cores).

If your final product is a rectangular sheet, you need a Cut to Length Machine. If you need narrow-width coils, choose a slitter.

Frequently Asked Questions About Cut to Length Machine

Can a Cut to Length Machine cut stainless steel?

Yes. Heavy-duty models with hydraulic shears easily process stainless up to 6mm thick.

What is the minimum sheet length?

Most Cut to Length Machine units can cut as short as 200mm; servo-driven models go down to 100mm.

Get a Custom Quote for Your Cut to Length Machine

Every production line is unique. Tell us your:

• Material type and thickness range

• Coil width and weight

• Desired output sheets per hour

• Required length tolerance

Our engineers will design a Cut to Length Machine tailored to your floor space and budget.
